4130B

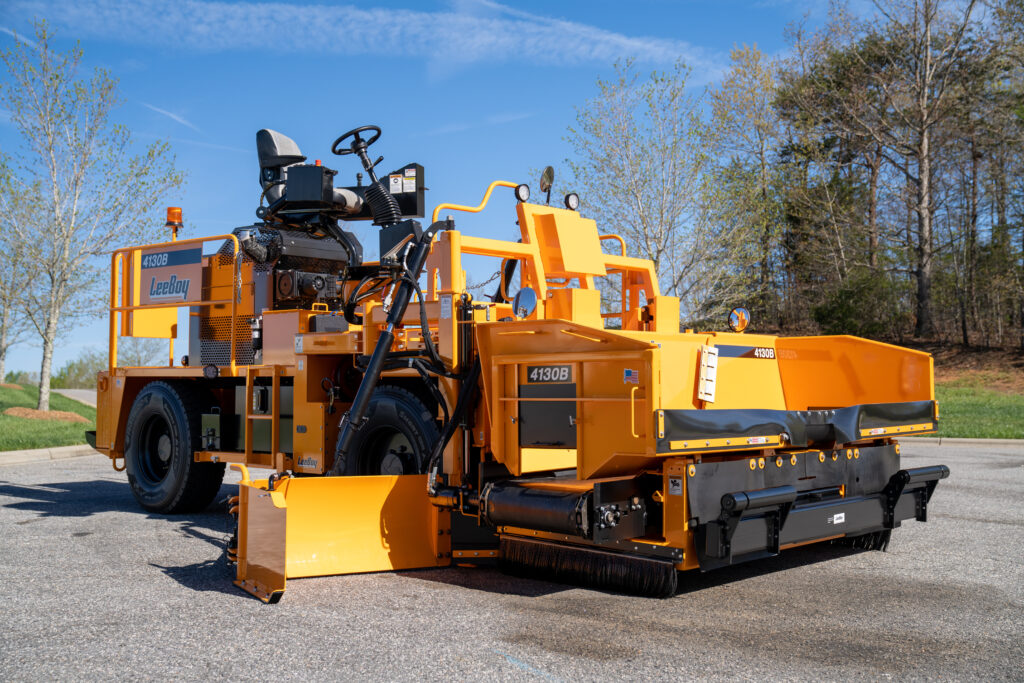

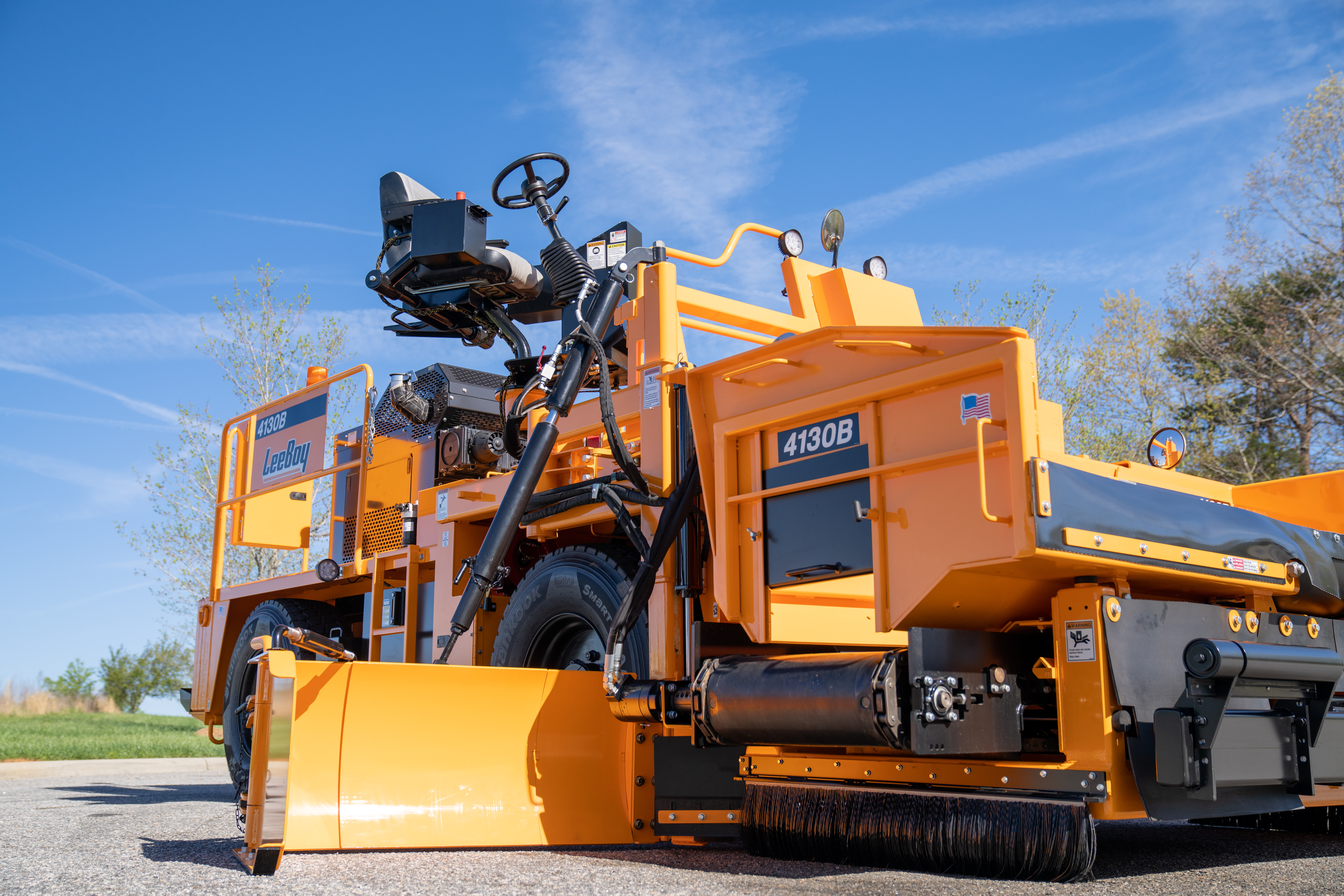

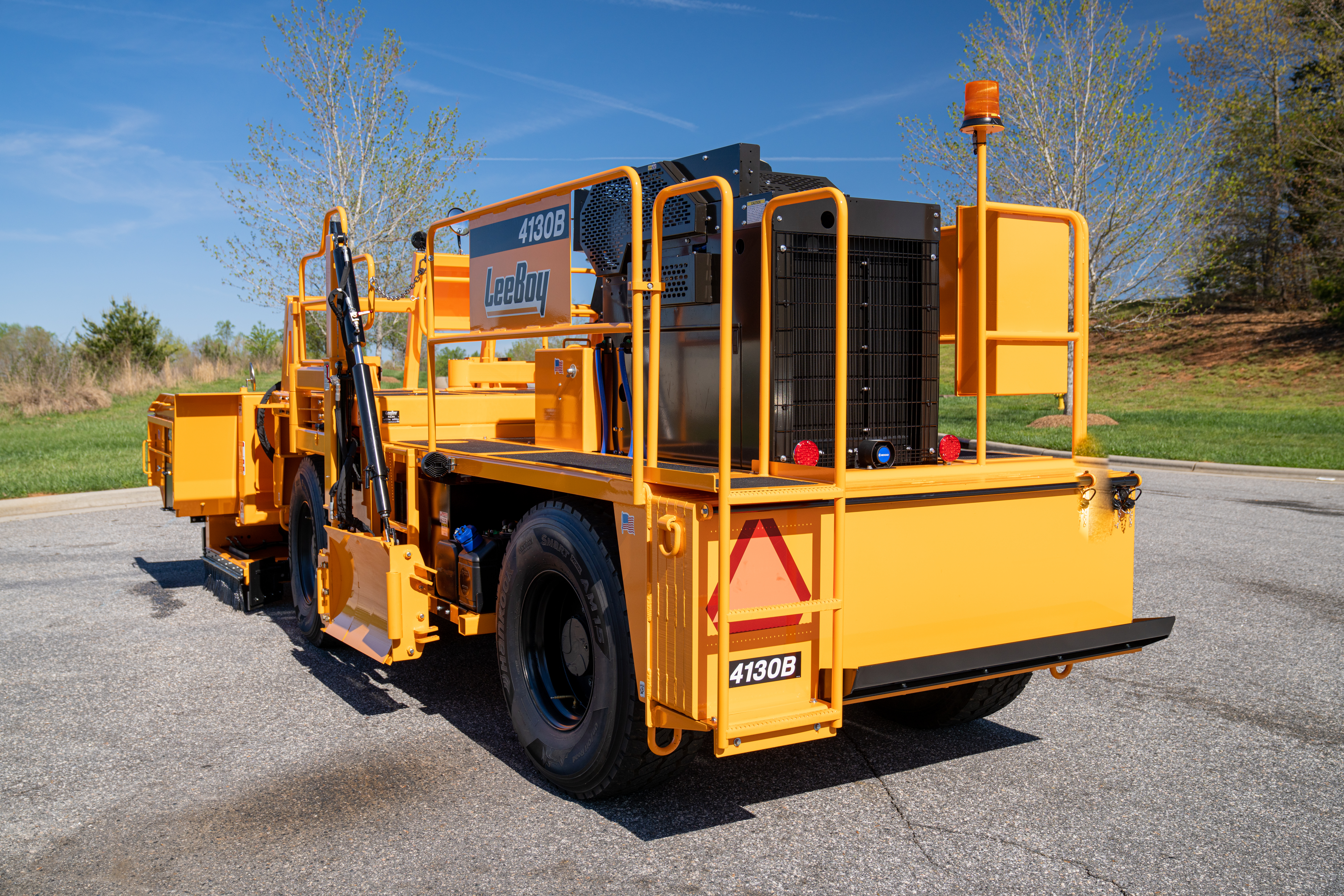

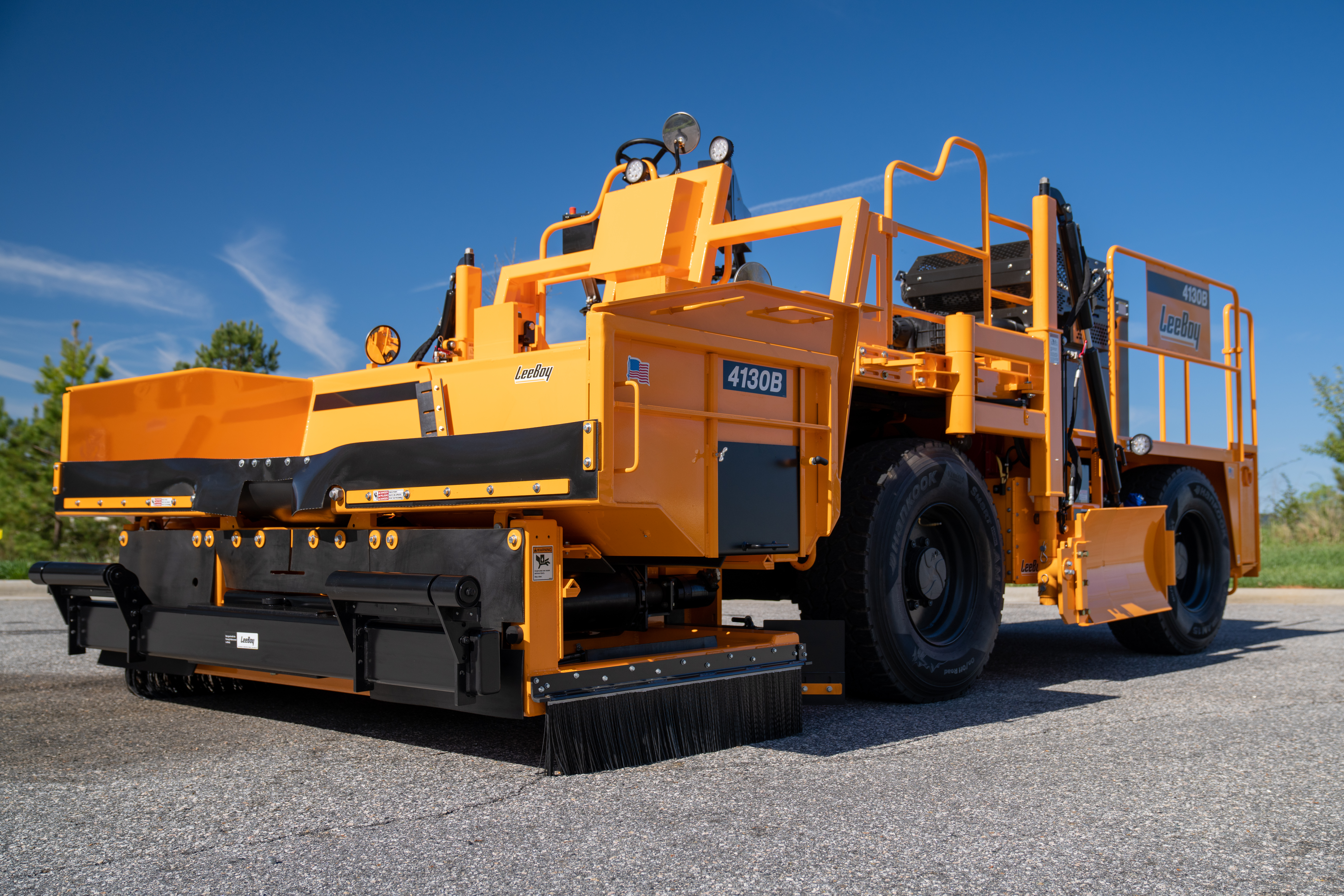

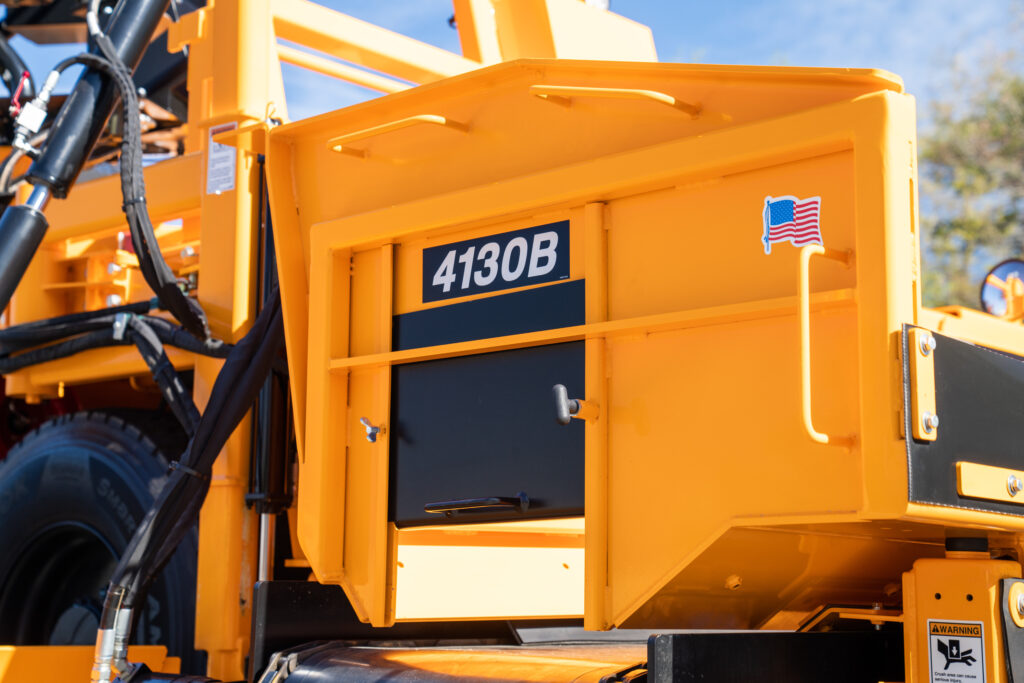

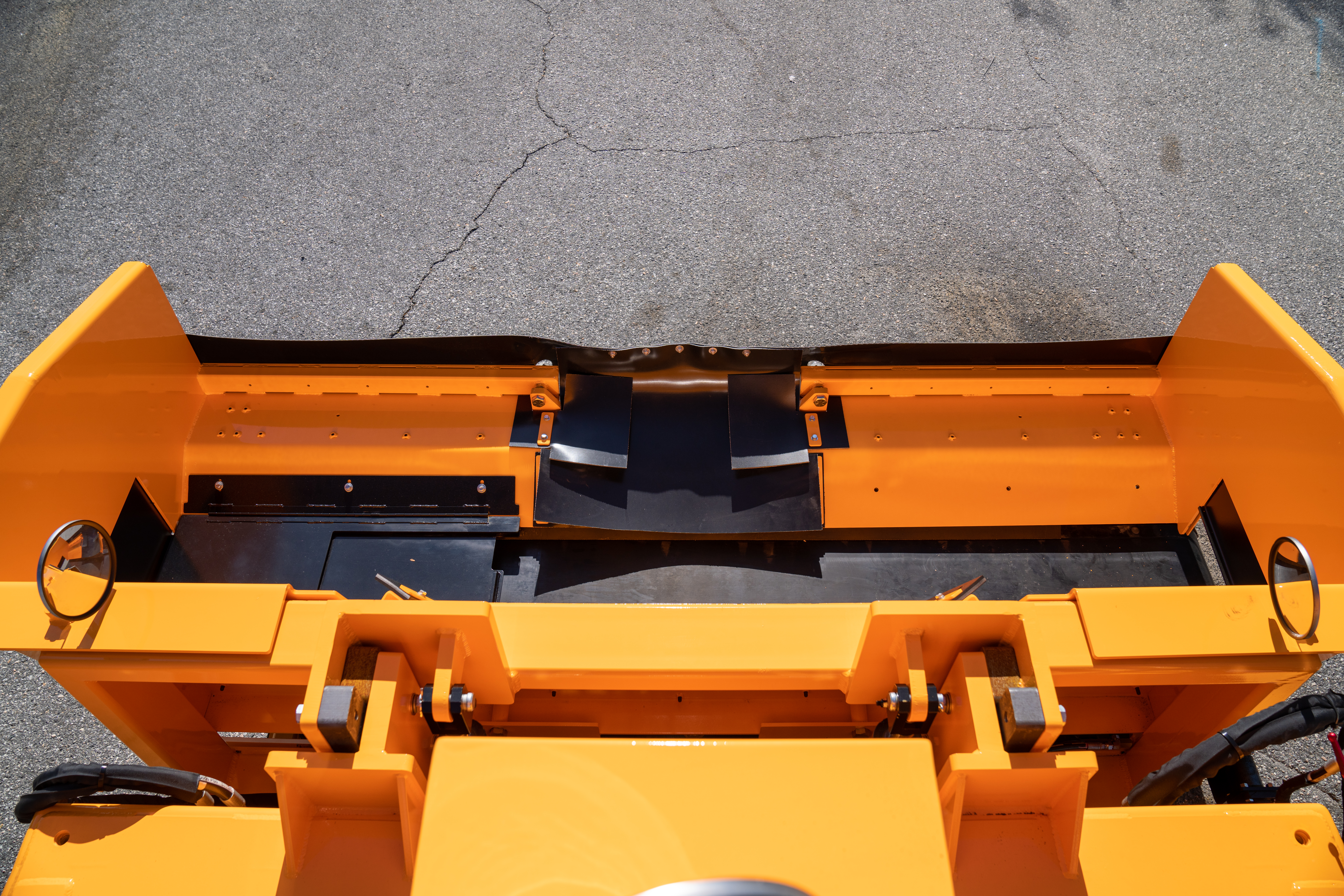

The 4130B road widener is a versatile machine that meets your road widening needs. The narrow width design allows for shipping without a permit while shiftable conveyor and foldable hopper wings allow precise placement of material to either side of the machine. Operator console easily shifts from side-to-side and allows a clear view into the front hopper and of the material flow to the strike-off. A vertical lifting hopper improves trailer loading angle. Extendable push rollers insure a variety of trucks can be used to feed the hopper.
LBP Equivalent: RW-85B
Find a DealerLeeBoy 4130B
Technical Specifications
Dimensions
- Length: 22’ 4”
- Width: 8’ 6” shipping
10’ 8” working - Height: 10′
- Wheelbase: 9’ 9”
- Total weight: 28,000 lbs
- No permit required for shipping

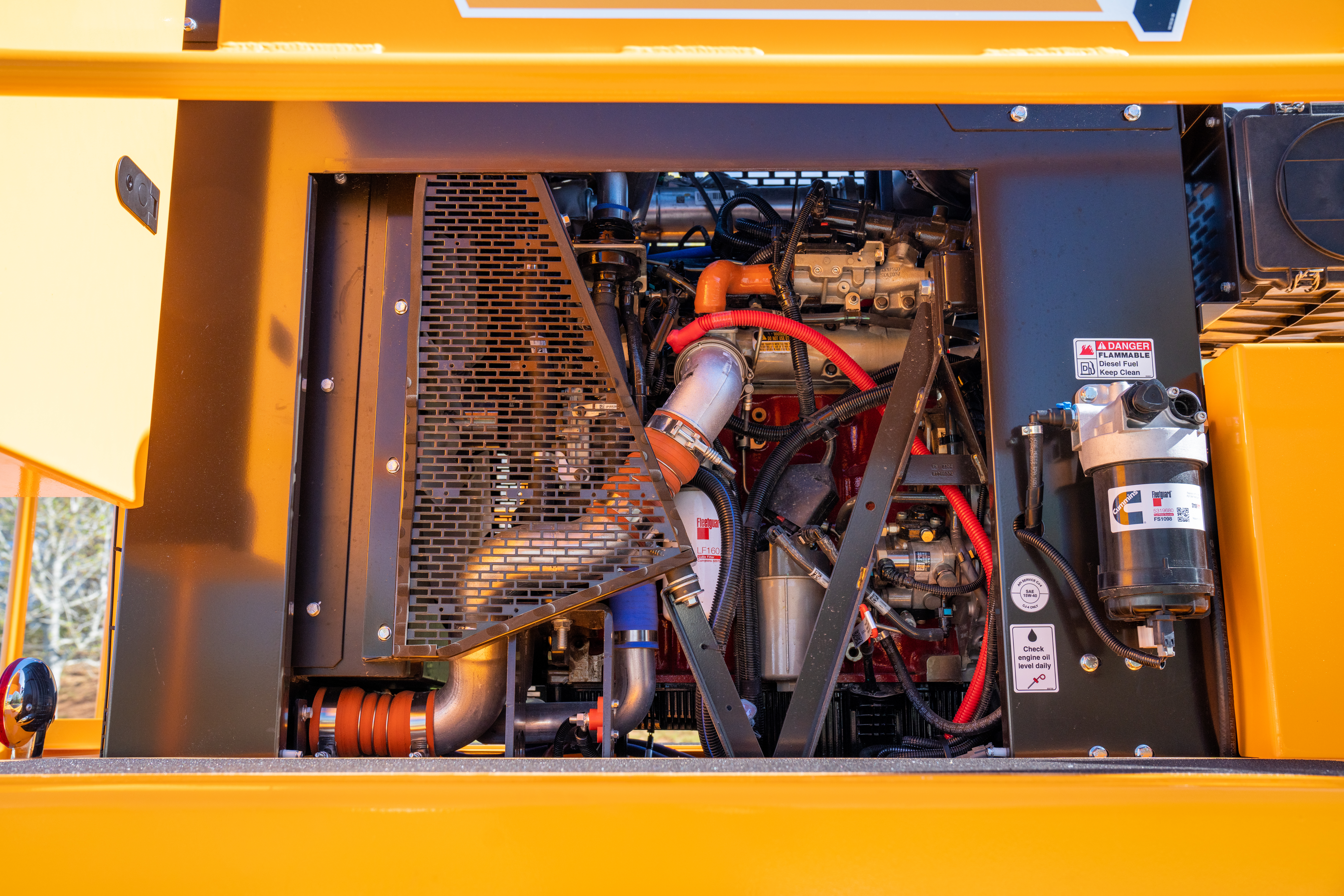

Engine
- 130 hp Cummins Tier 4 Final engine
- Water-cooled
- Battery: 12 volt, 120 amp alternator
- Electric start
- Fuel reservoir: 51 gallons

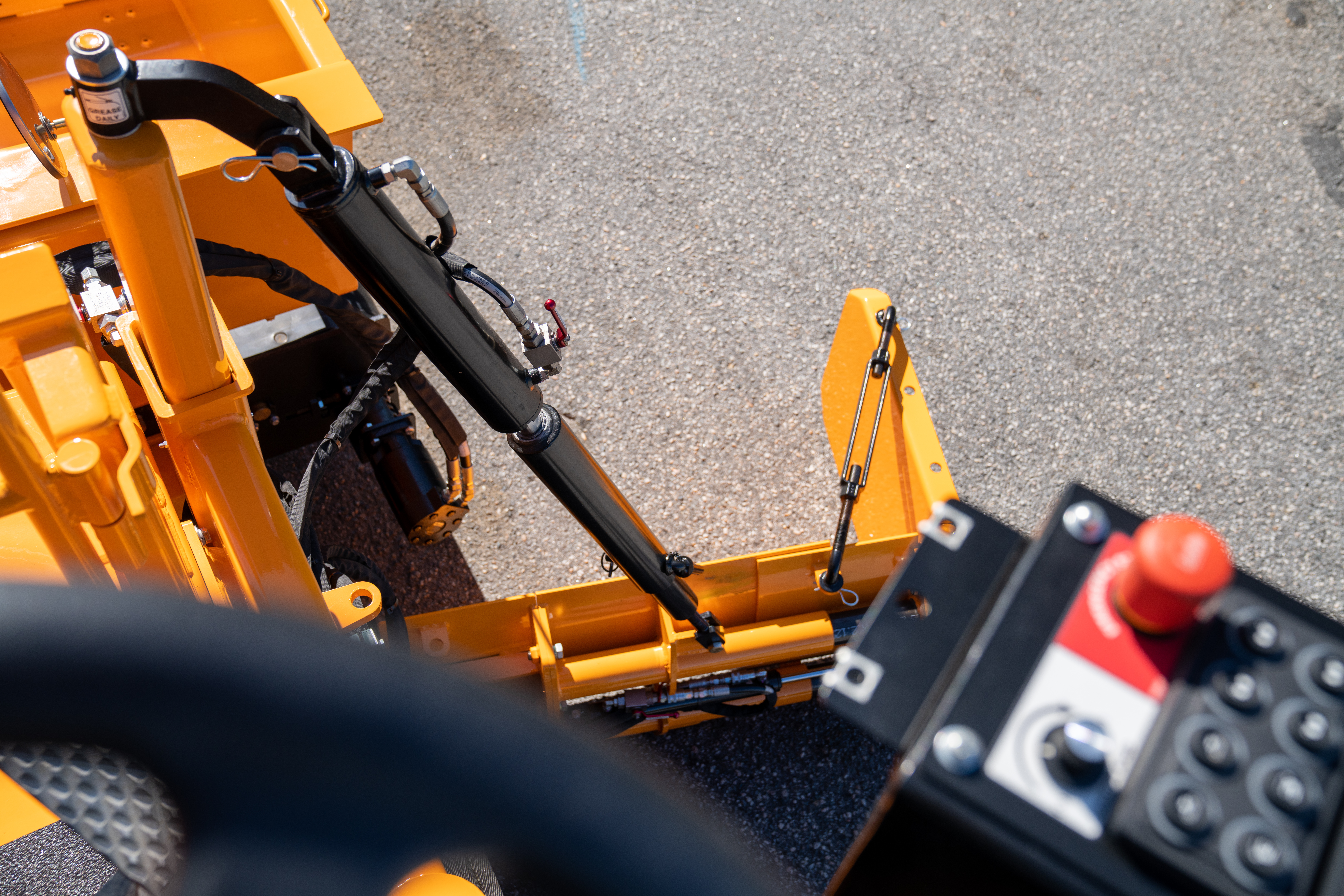

Operator's Controls
- Single pivoting control station with supporting rollers: control station swings outside of frame left or
right when working, or centered for transport Operator seat with armrest with tilting and
telescoping steering wheel - Control functions on the operator’s console: Main power, starter throttle, horn, conveyor
speed, shuttle and discharge direction, strike off grade, slope and extension, hopper wing,
steering, and parking brakes
