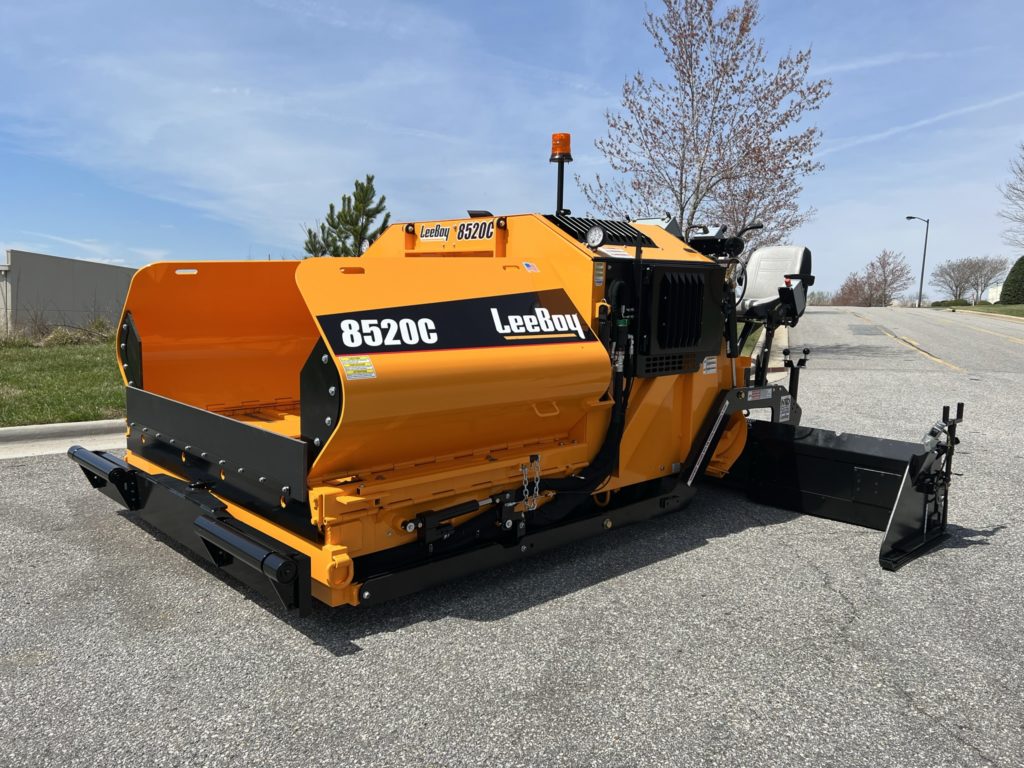

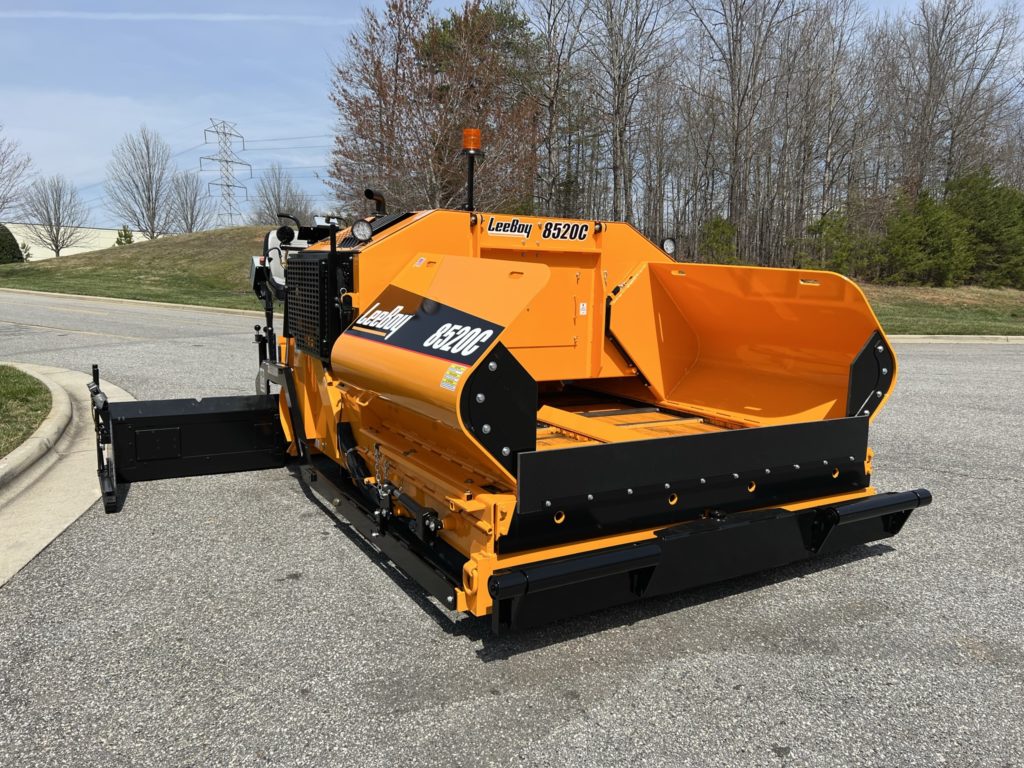

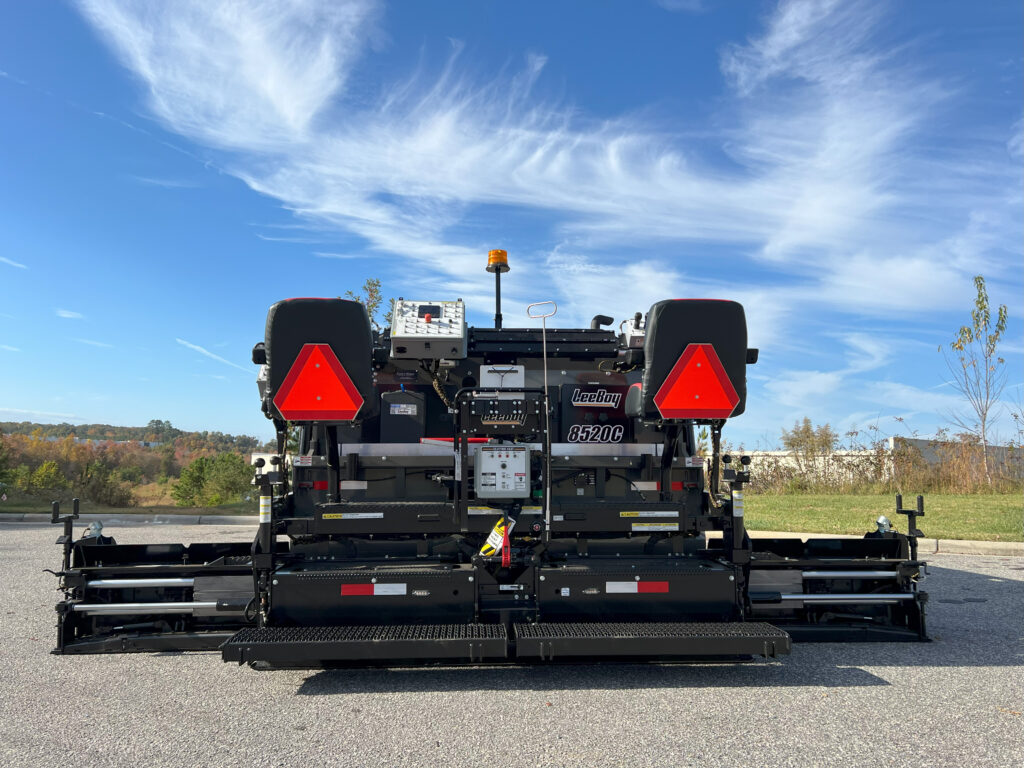

8520C

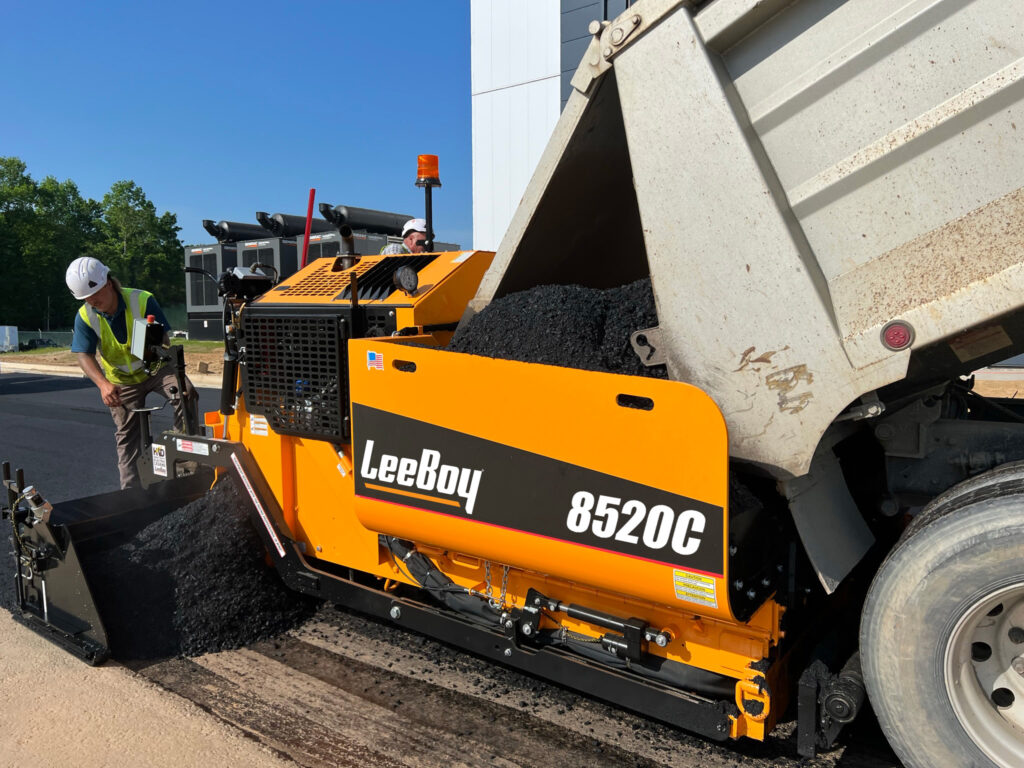

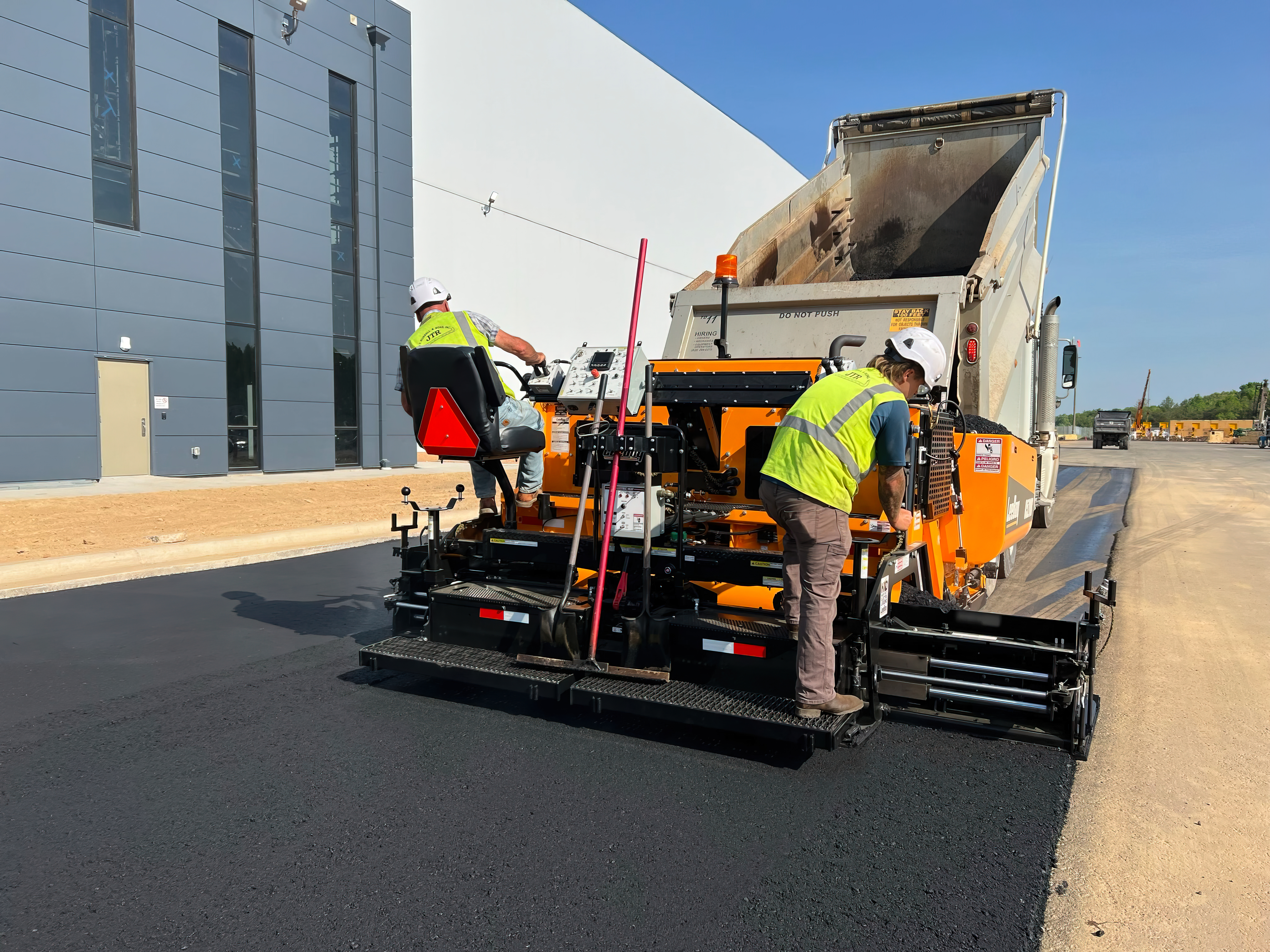

We’ve set the standards in heavy-commercial paving even higher! Equipped with exciting new features that were truly designed with the paving professional in mind, the LeeBoy 8520C is a 125hp workhorse. Standard machine assets include the 3,450 lbs Legend HD Screed with, heavy-duty conveyor chains, dual seating and sliding main controls, a LeeBoy 2-year product warranty as well as many other enhancements. As always, LeeBoy’s wide slow-moving conveyor system moves material from the truck to the screed without segregation which ensures a flawless mat.
Find a Dealer Compare ProductsLeeBoy 8520C
Technical Specifications
Operator’s Controls

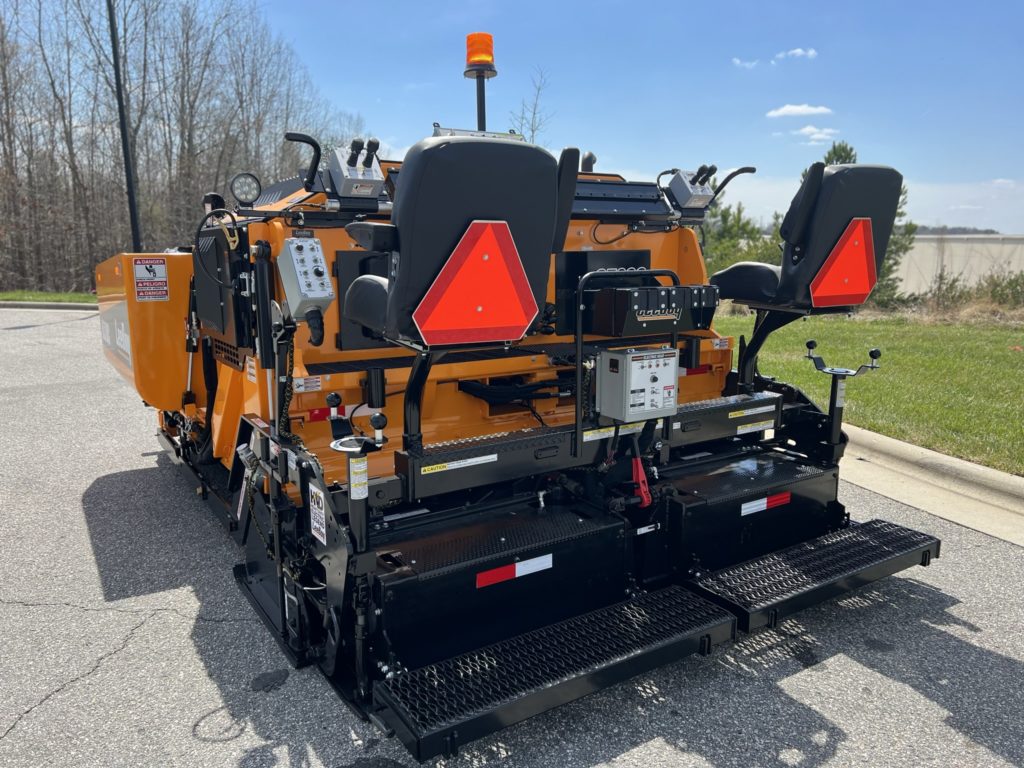

- High deck/low deck configuration
- Includes dual electronic steer

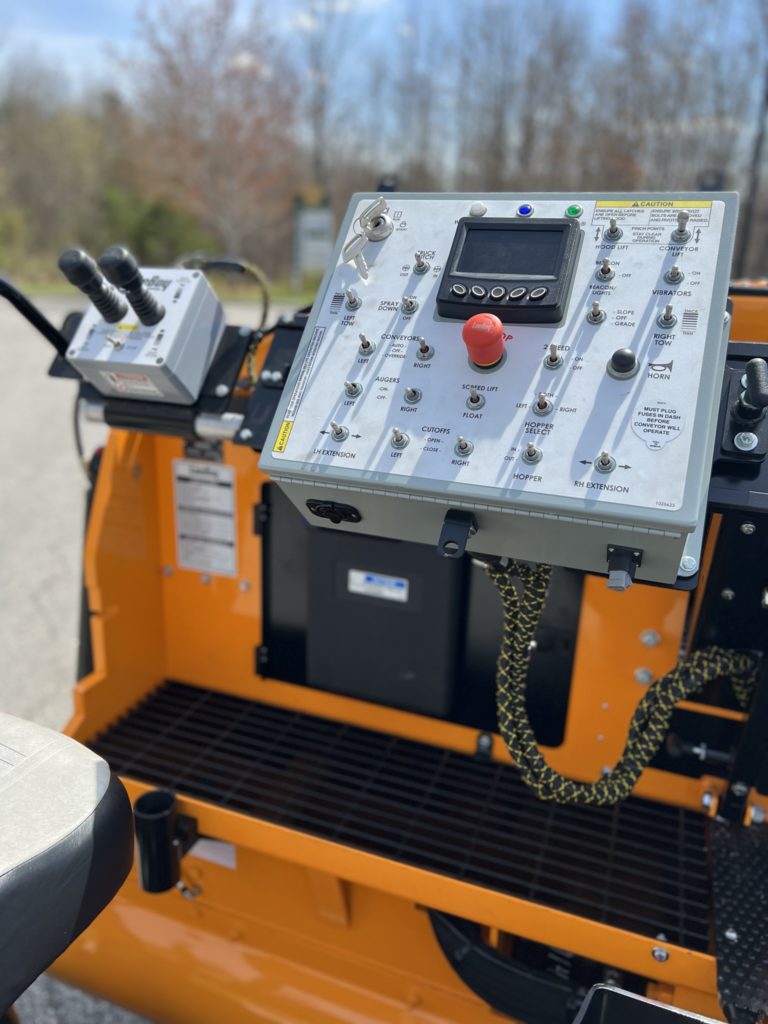

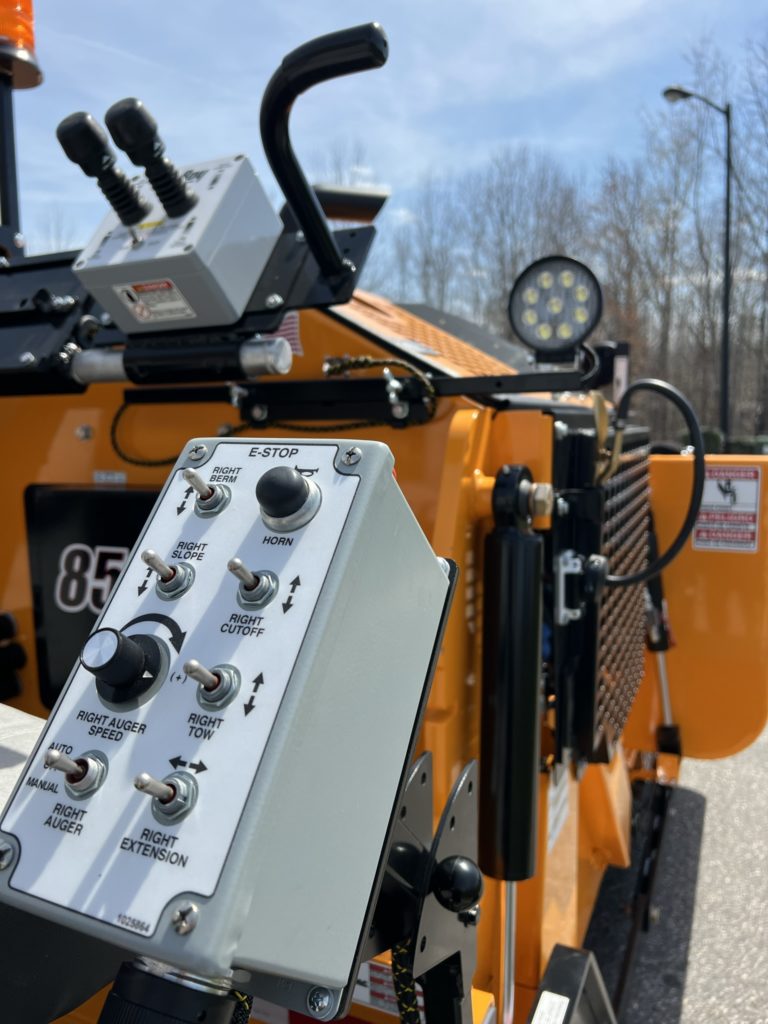

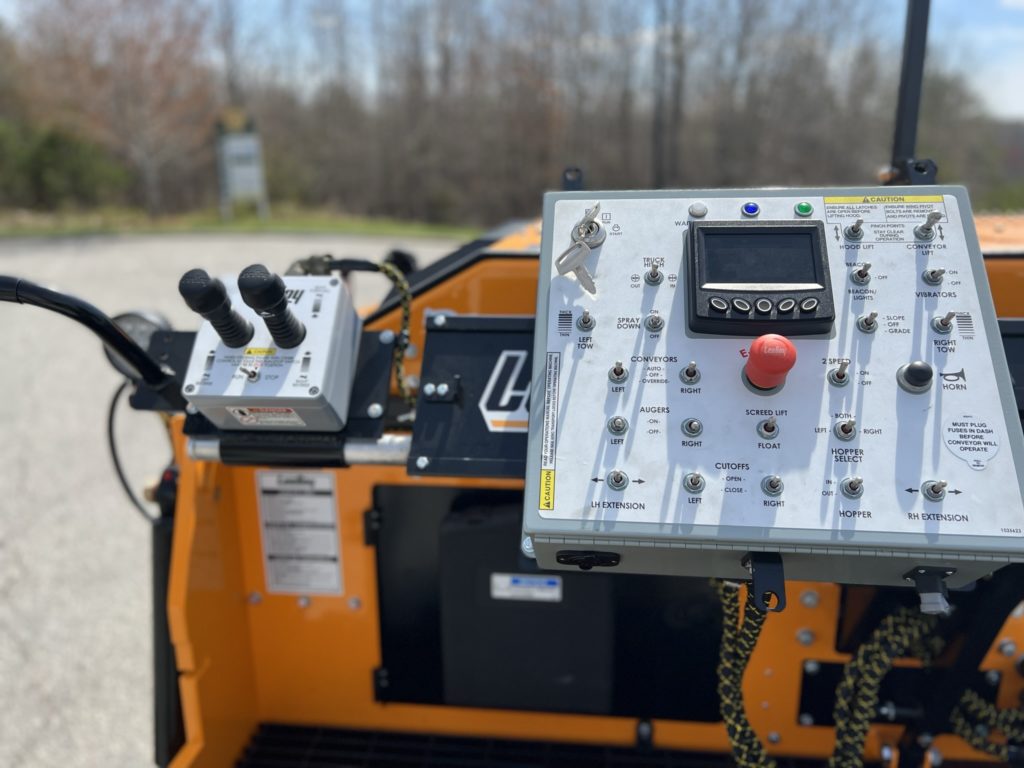

- All control switches are located in one box that can be slid to each side. Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, and lights
- Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics
Dimensions
- Length: 14’ 10”
13’ 10” transport - Width: 8’ 6” transport
10’ hopper wings down - Height: 6’ 8” low deck
6’ 10” high deck - Total Weight (with screed): 21,400 lbs.
22,100 lbs. (with HD Pro Screed)

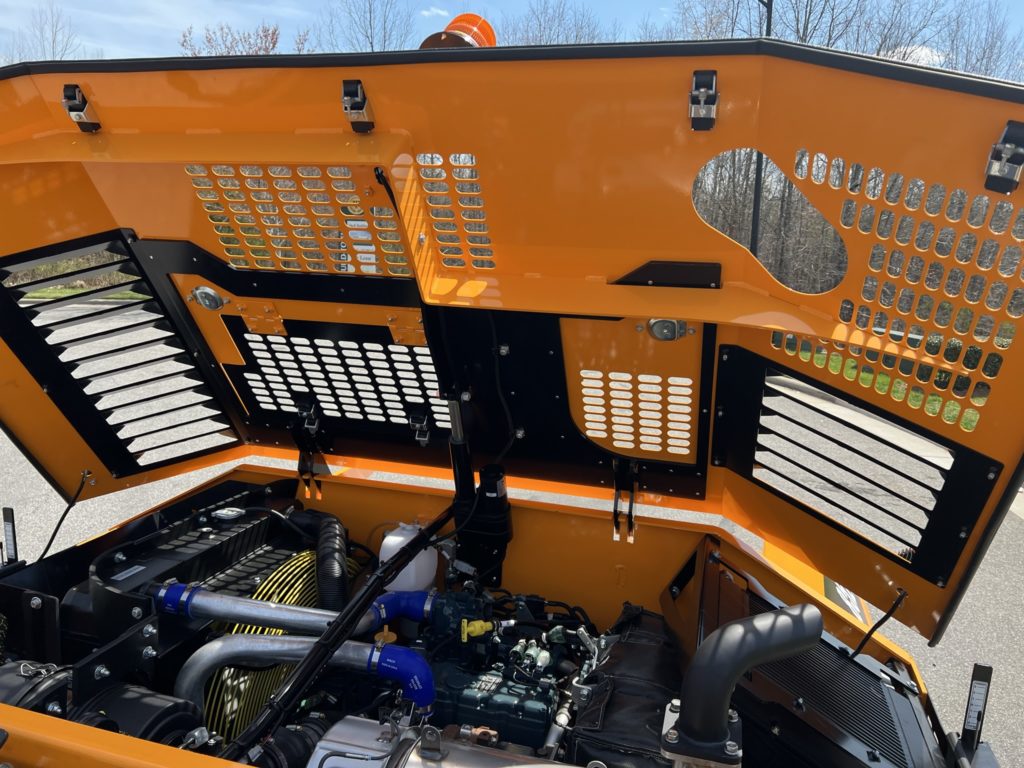

Engine
- Kubota turbocharged diesel
- Tier 4 Final – 125 HP (93 kW) @ 2,200 rpm
- Remote mounted DOC + DPF + SCR
Capacities
- Fuel: 32 gallons
- Hydraulic: 25 gallons
- Washdown tank: 7 gallons
- DEF tank: 5 gallons
Paving Widths
- Machine has variable paving widths up to 15’
- Machine has variable paving widths up to 15’ 6” (with HD Pro Screed)
