Rosco

Maximizer 3B

Distributors

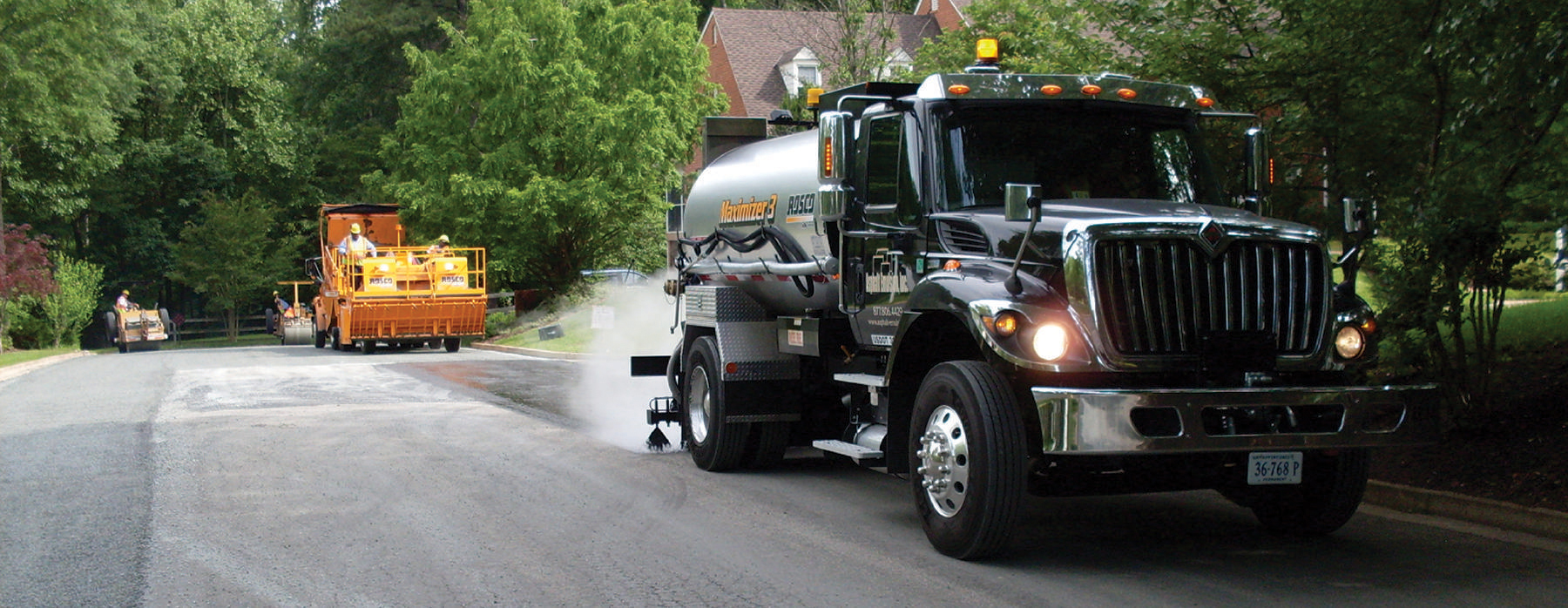

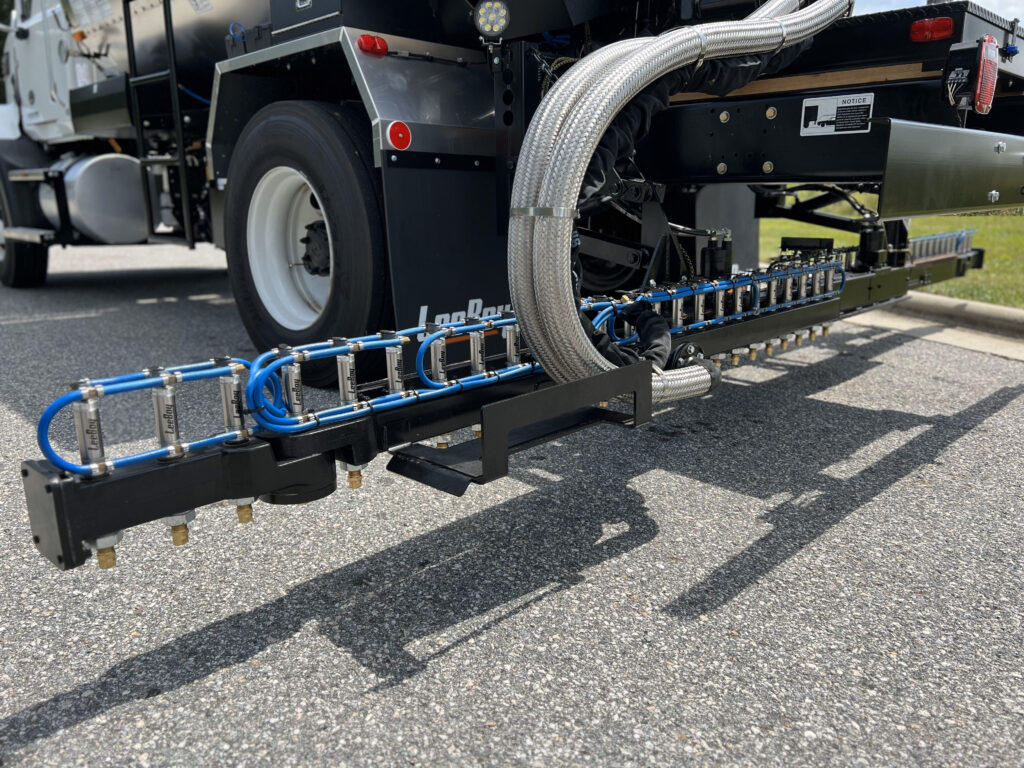

With a larger fully circulating extending spray bar, the Rosco Maximizer 3B has the ability to cover a wide area in an extremely efficient manner. Admired by contractors and municipalities alike, this trusted machine always delivers an accurately consistent end result. With the aid of a large color monitor, operators can monitor vitals, oversee the variable width and rate control or engage the enviro-flush cleanout system among others. The Maximizer 3B is a highly versatile piece of equipment designed with the end user in mind.

Find a Dealer

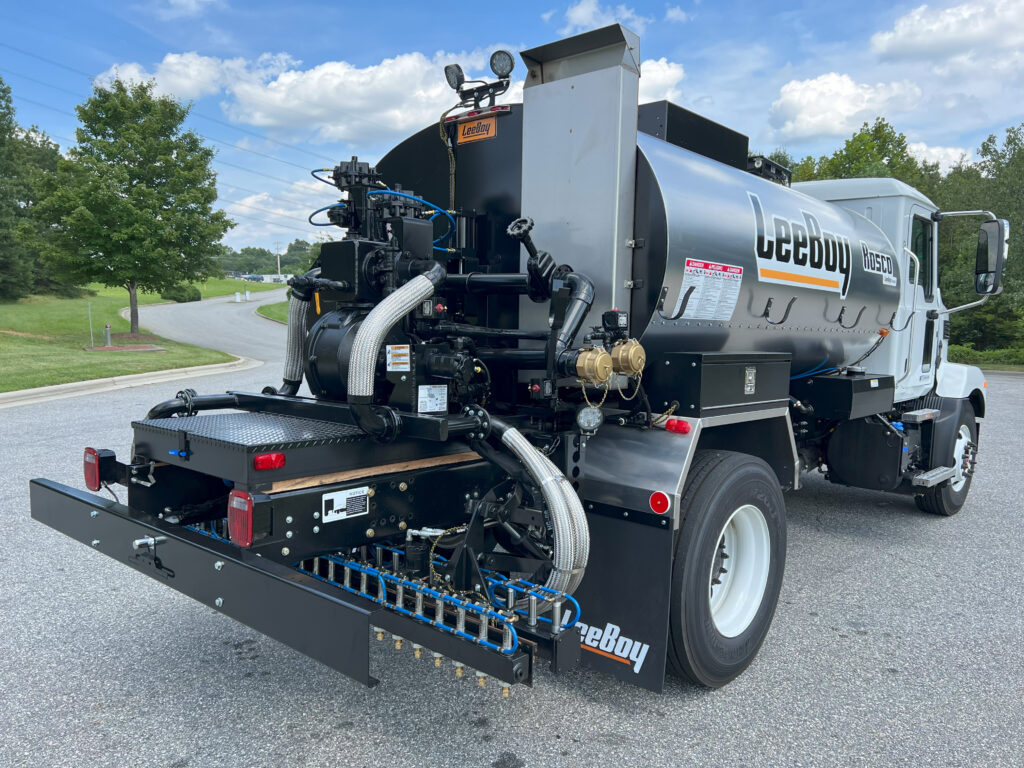

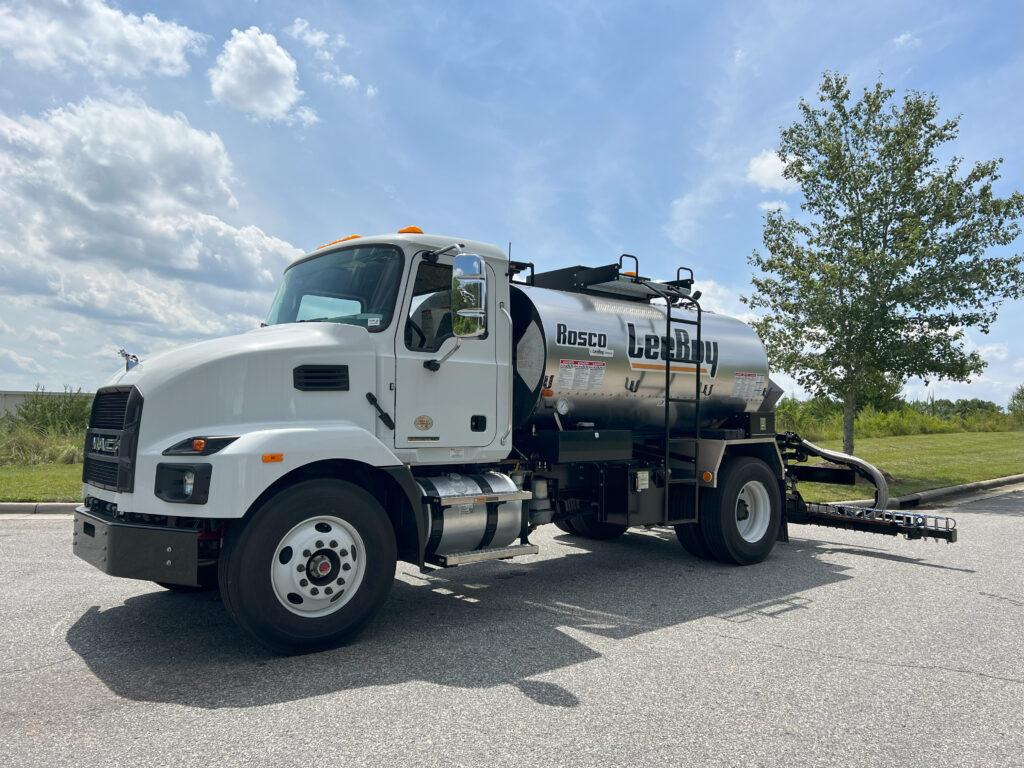

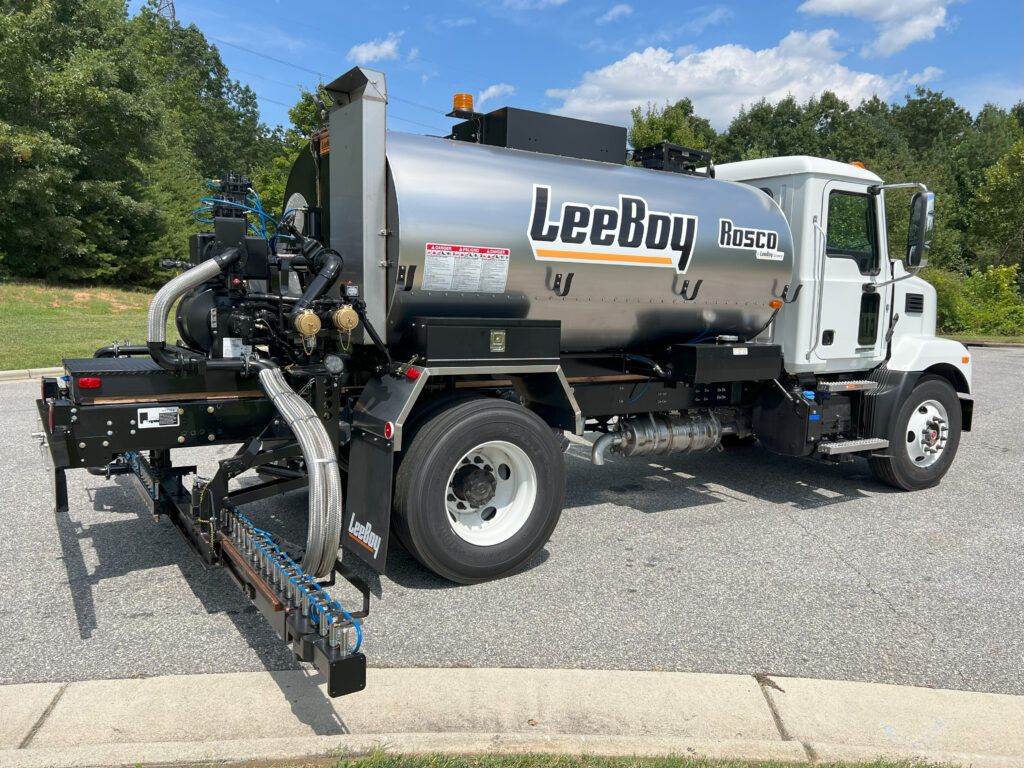

Rosco Maximizer 3B

Technical Specifications

Controller

  • Plus+1 CAN Bus control and onboard diagnostic system
  • 7” high-resolution, color graphic display
  • Controller for automatic application rate control
  • Automatic valves for cab control of distributor functions
  • Exclusive enviro-flush system with hydraulic pump speed control
  • Settings for flow, speed calibration, spraybar width and spray bar on/off control by section
  • Automatic valves for cab control of distributor functions
  • Capable of storing up to 12 preset combinations of application rates and flow calibrations for instant retrieval
  • Selectable readouts include FPM, GPM, total feet sprayed, total gallons sprayed, total square yards sprayed, flow and speed calibration, application rate, tank temperature, hour meter and spraybar width (English and metric units can be selected for the rate controls)
  • Controller provides accurate applications regardless of changes in speed or spraybar width during operations
  • Includes radar horn ground speed sensor
  • Convenient external controls mounted on rear fender

Asphalt Pump

  • Viking, positive displacement pump
  • Rotary gear type with built-in relief valve for safety
  • Asphalt pump driven by low speed high torque fixed displacement hydraulic motor and connected by a flexible coupling
  • Pump:  400 gallon per minute

Dimensions

  • Length: Depends on type of truck purchased and options selected
  • Width: Depends on type of truck purchased and options selected
  • Height: Depends on type of truck purchased and options selected
  • Weight: Depends on type of truck purchased and options selected

Capacity

  • 1,050 gallons to 5,313 gallons**See Spec Sheet for important info
Download Full Specs
