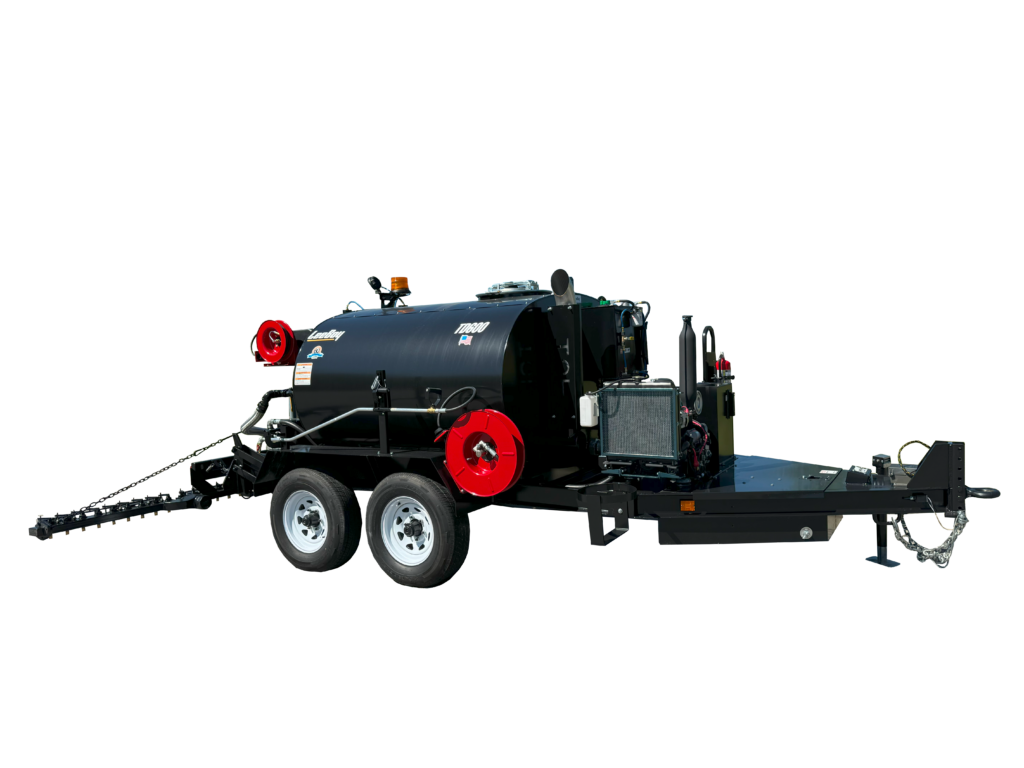

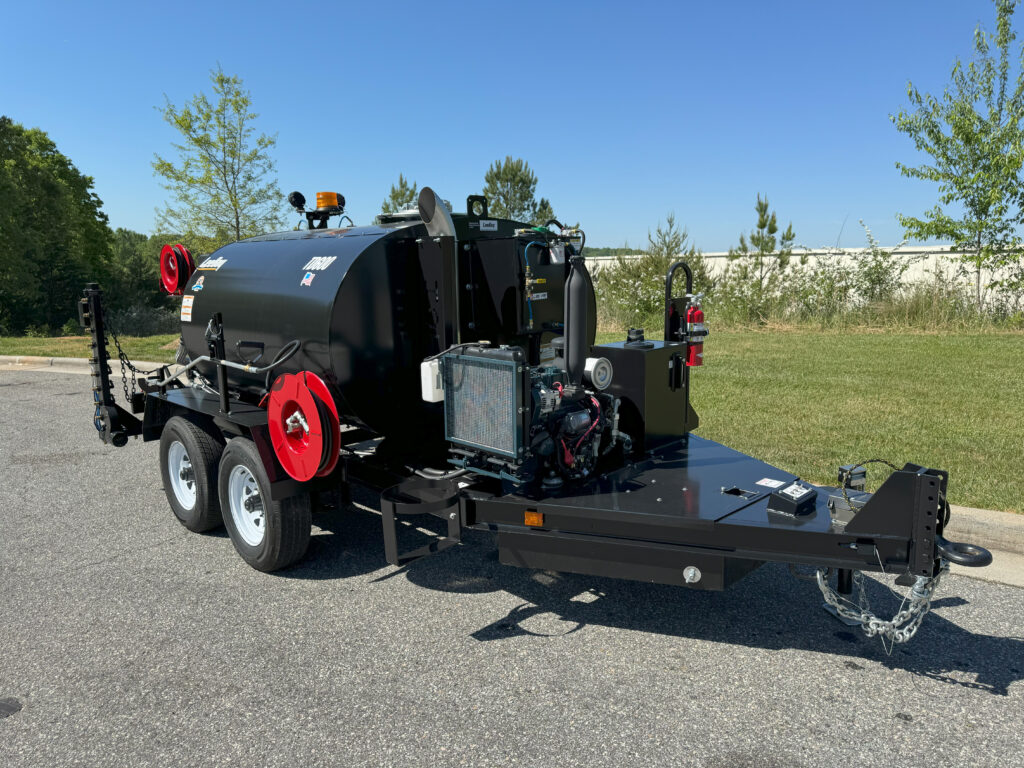

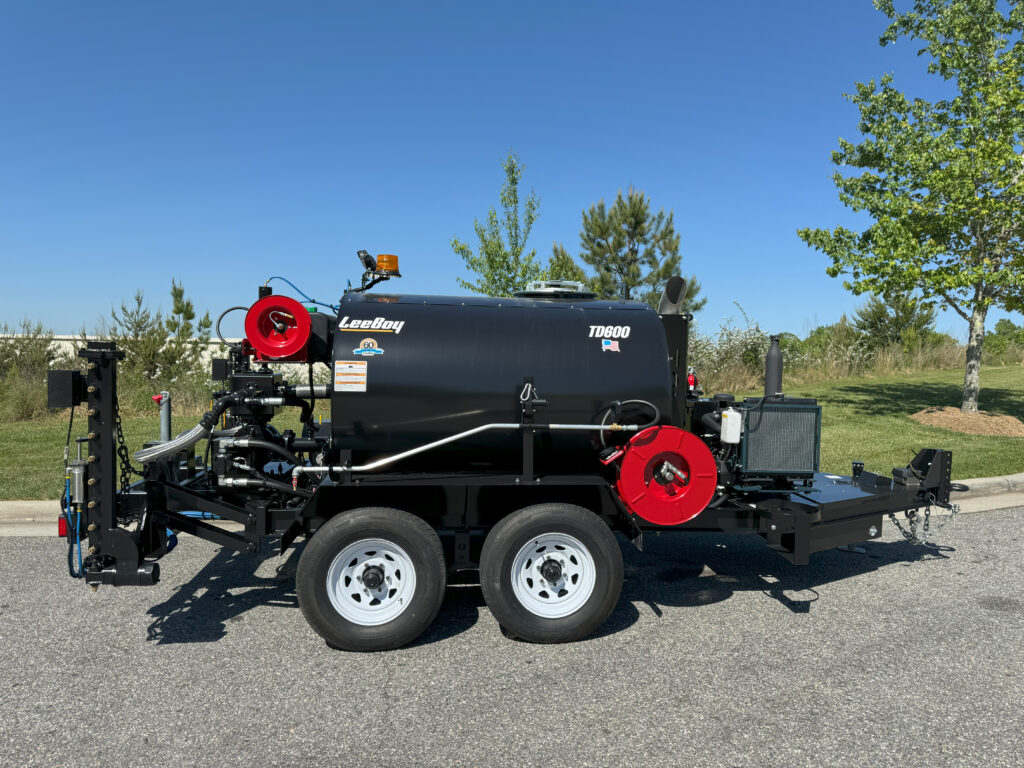

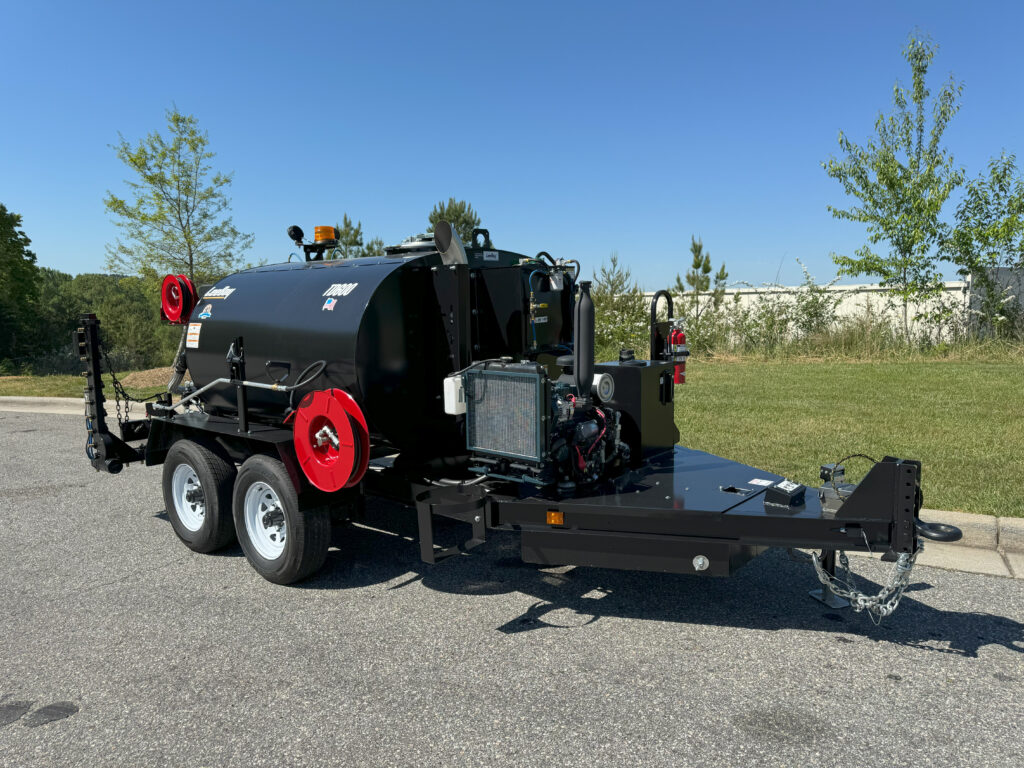

LeeBoy

TD600

Tack Distributor

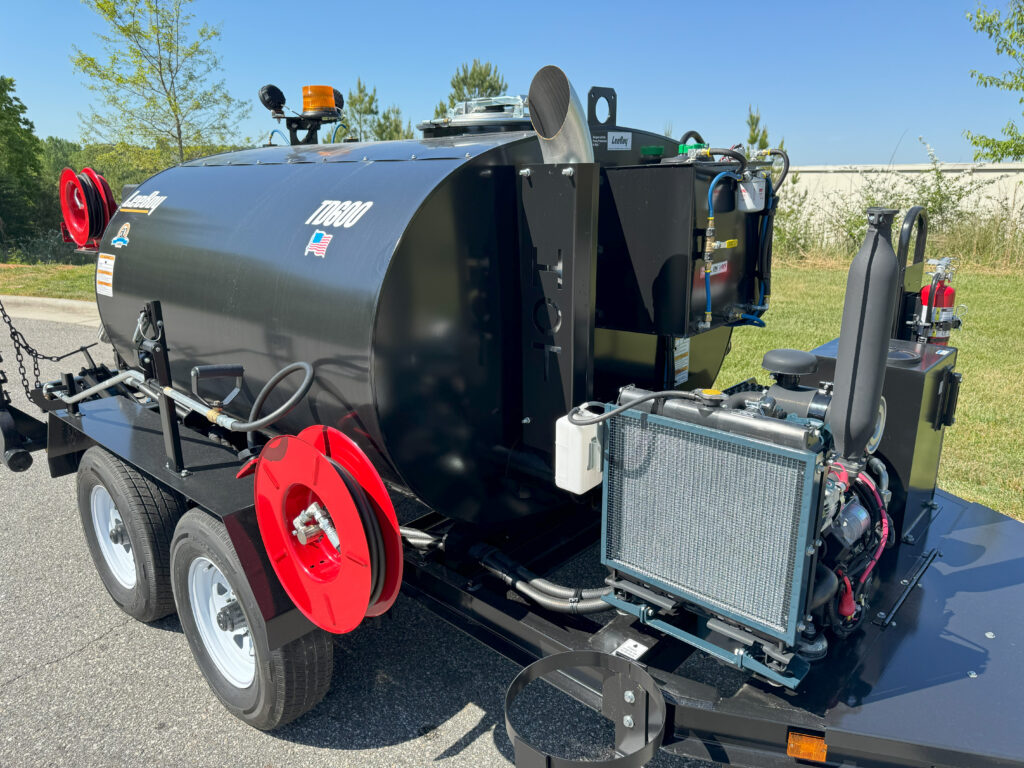

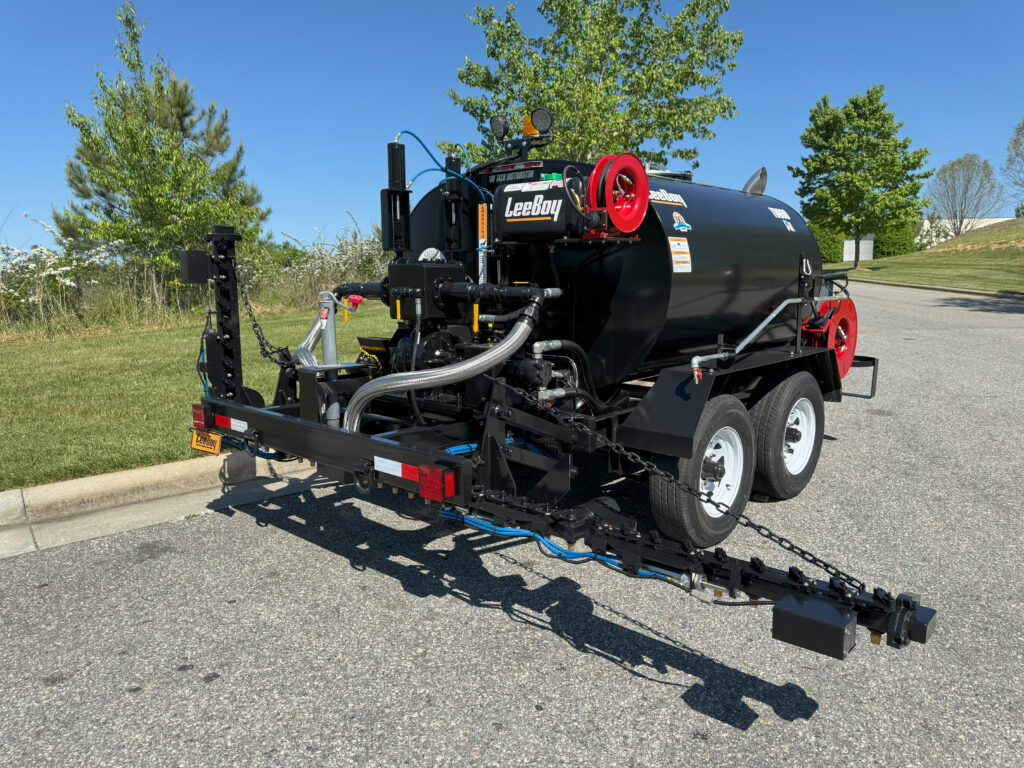

Perfect for the all-inclusive commercial paving contractor, the TD600 Tack Distributor provides a perfectly sized tank for large projects including parking lots, secondary roads, highway, driveways or soil stabilization. Daily tasks can be completed with ease by using LeeBoys application rate control system . Uniquely configurable, the customizable options give the contractor the ability to create a solution specific to their exact needs.

Find a Dealer

LeeBoy TD600

Technical Specifications

Dimensions (Trailer Configuration)

  • Length: 17′ 5”
  • Width:  7’ 8”
  • Height:  6’ 9”
  • Tank:  600 gallons

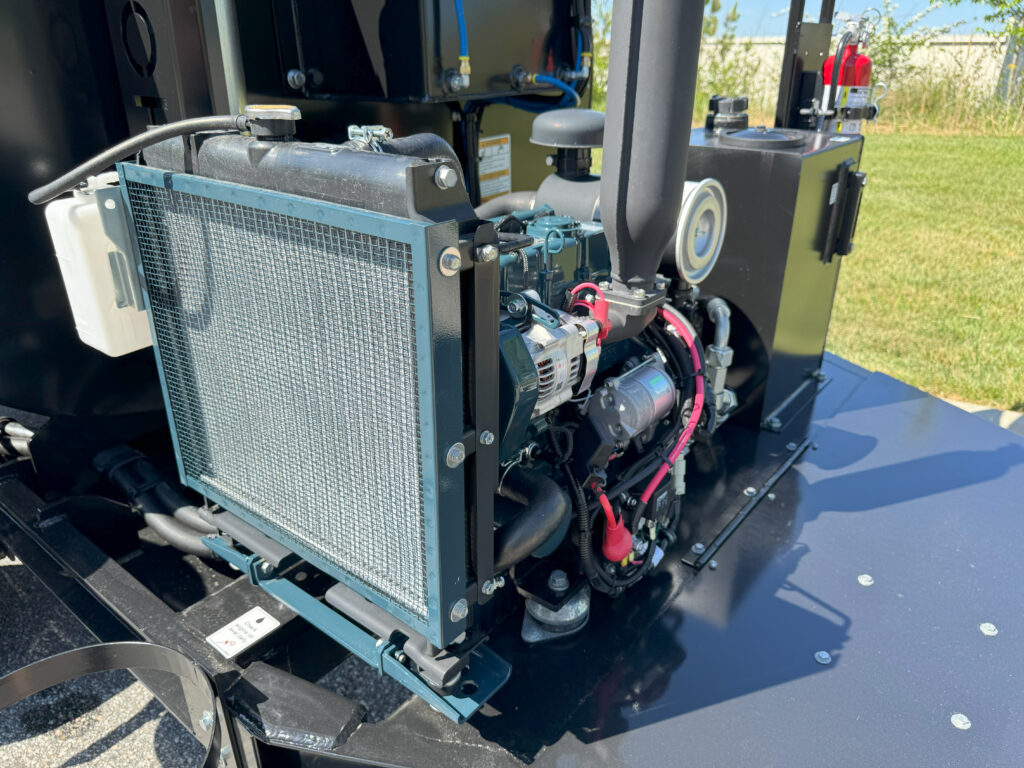

Engine

Kubota – 24.8 hp (18.5 kW)

Capacities

Fuel: 16 gallon

Tank Dimensions

  • Length: 64”
  • Width: 70”
  • Height: 42”

Asphalt Pump

150 gallons per minute Viking asphalt pump

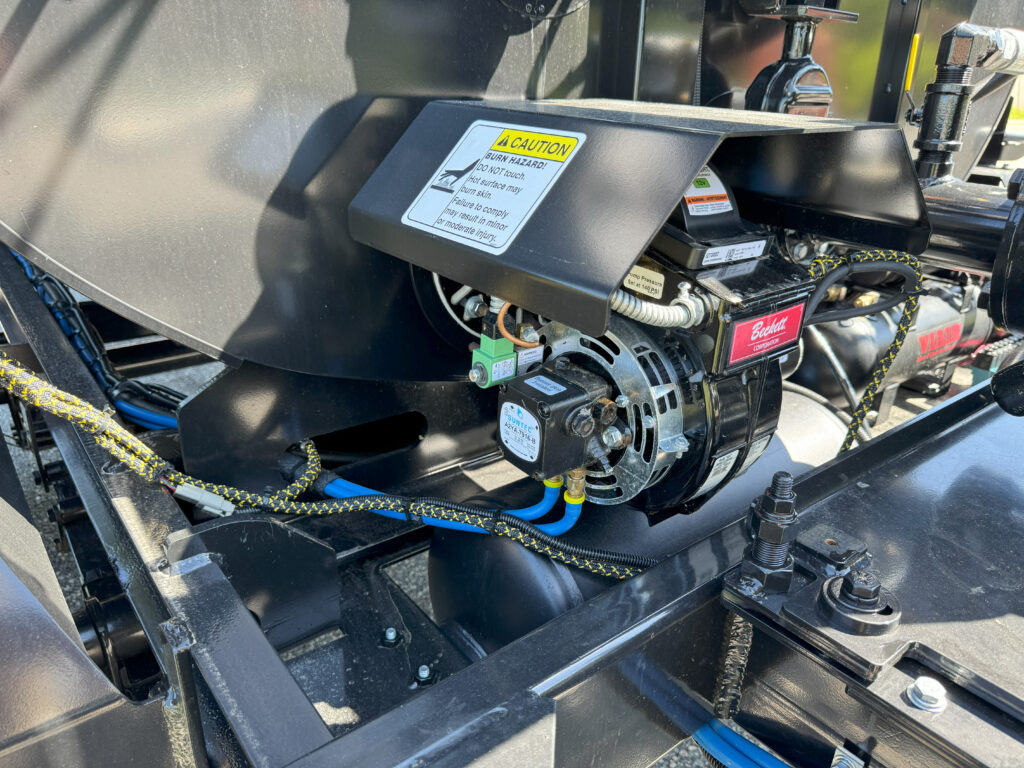

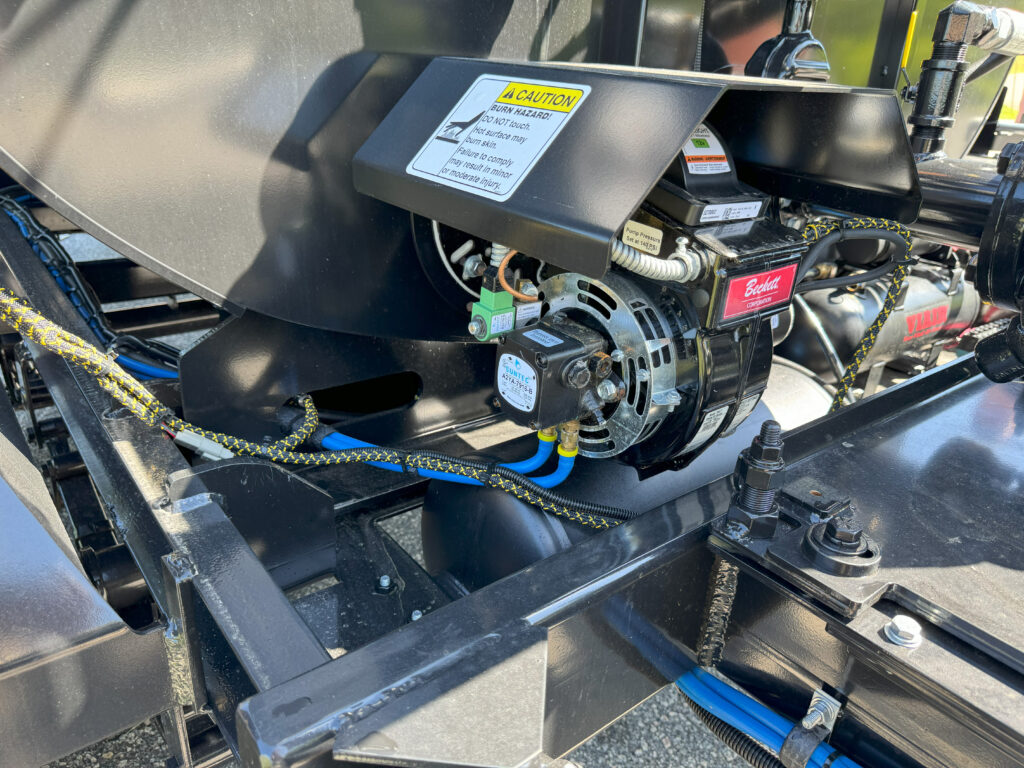

Heat System

  • One 300,000 BTU diesel burner
  • Five pass flue system
  • Galvanized exhaust stack

Temperature Gauge

  • 0 – 500ºF
  • Adjustable angle faceplate

Flush Tank

7 gallons

Wireless In-Cab Controls

  • Color display with readouts for: engine rpm, engine fault status, system faults, engine hours, ground speed, application rate, spray width,
    material temperature, material temperature set point, mode selection, asphalt pump current speed, valve status, totals screen
  • Auto/Manual pump selector
  • Manual pump speed dial
  • Engine start/stop
  • Bar circulate/off/spray switch

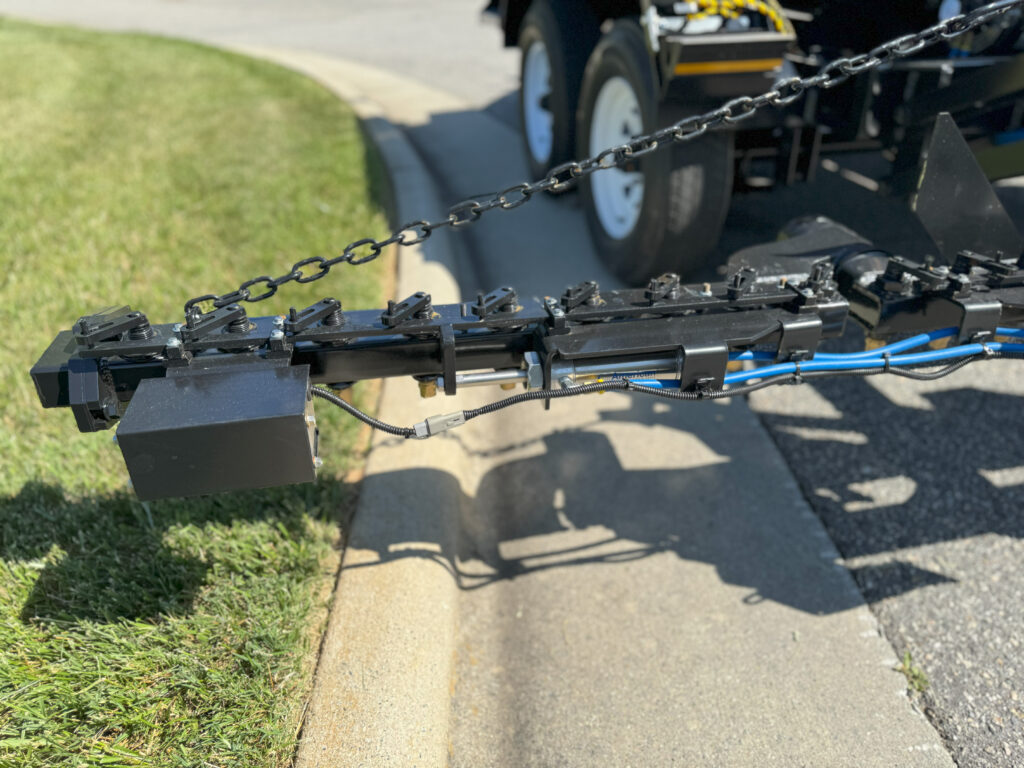

  • Bar section on/off for left wing, left center, right center, right wing
  • Mode selector: off, spray/bar circulate, tank circulate/hand spray, reverse suction, cleanout, calibration
  • E-stop
